SS 428 91 01, EN 61230

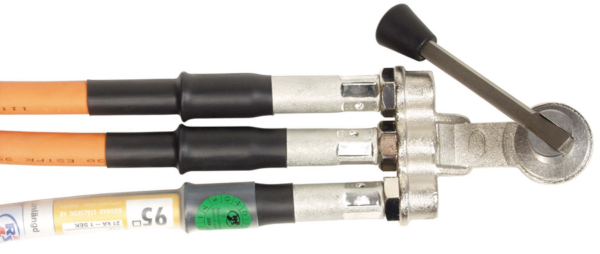

Cable shoe JLA 32 is for connection to earthing contact fittings types JBF and JVF.
The conducting parts of the cable shoes are made of nickel-plated electrolytic copper. JLA 34 has stainless steel spring washers to ensure constant contact pressure. The earthing cable is connected by compression to the cable shoe. JLA 32/M16 is for connection to a pinn-bolt M16.
E-numero
|
E-No.
|
Type
|
Earthing cable area
mm2
|
Rated Current
max. kA/1s
|
Weight kg/unit
|
|
JLA 32
|
25 – 150
|
34,0
|
1,6*
|
|
| JLA 32/M16 | 25 -150 | 34,0 | 1,6* |
* Incl. cable connection for max earthing cable area.
