SS 428 91 01, EN 61230

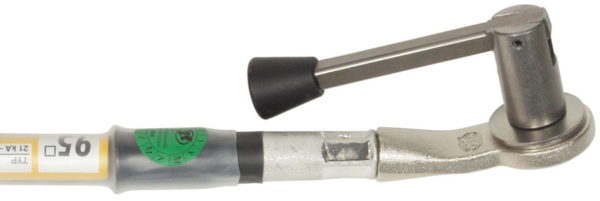

Cable shoe JLA 34 is for connection to stationary earthing fittings JBF and JVF.
The conducting parts of the cable shoes are made of nickel-plated electrolytic copper. JLA 34 has stainless steel spring washers to ensure constant contact pressure. The earthing cable is connected by compression to the cable shoe. JLA 34/M16 is for connection to a pinn-bolt M16.
E-numero
|
E-No.
|
Type
|
Earthing cable area
mm2
|
Rated Current
max. kA/1s
|
Weight kg/unit
|
|
JLA 34
|
25 – 185
|
42,5
|
0,7*
|
|
| JLA 34/M16 | 25 – 185 | 42,5 | 0,7* |
