SS 428 91 01, EN 61230

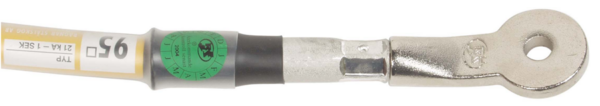

Cable shoe JLA 35 is for connection to stationary earthing fittings JBF and JVF.
The conducting part of the cable shoe is made of nickel-plated electrolytic copper. The earthing cable is connected by compression to the cable shoe.
E-numero
|
E-No.
|
Type
|
Earthing cable area
mm2
|
Rated Current
max. kA/1s
|
Weight kg/unit
|
| JLA 35 | 25 – 150 | 34,0 | 0,4* |
*Incl. cable connection for max earthing cable area.
